USED MAGNA SINE INVERTER CHARGER MS2812 RV PARTS FOR SALE CONDITION - USED. PRICE $1,250.00 + $60.00 SHIPPING. RV/MOTORHOME USED MAGNUM ENERGY INVERTER CHARGERS. CALL VISONE RV (606) 843-9889 TO ORDER. MAGNA SINE INVERTER OPERATION CHARGER OPERATION CONTROL NO. 35522B1A8D WORLDS LARGEST SELECTION OF USED RV/MOTORHOME PARTS FOR SALE. ALSO A SELECTION OF INTERESTING ITEMS RELATED TO INSURANCE SALVAGE. NOTE: ALL USED ITEMS AND PARTS ARE ALWAYS SOLD AS-IS WITH NO RETURNS. HOWEVER, AT VISONE RV, WE DO TEST ALL ELECTRICAL COMPONENTS - PRODUCTS. THEY ARE IN WORKING ORDER BEFORE SHIPPING OR PICK-UP SO THAT OUR CUSTOMERS CAN BUY WITH CONFIDENCE! ITEM AVAILABLE FOR SHIPPING. TO ORDER PLEASE CALL VISONE RV (606) 843-9889 OR ADD TO SHOPPING CART FOR EASY CHECKOUT.

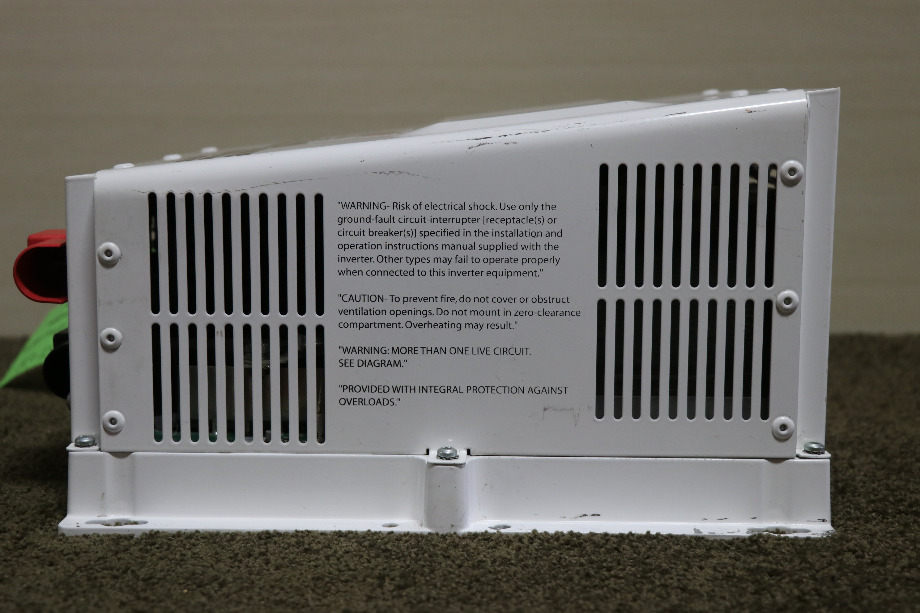

BY MAGNUM ENERGY
INVERTER CHARGER
MODEL: MS2812
SERIAL NUMBER: H1-10772
MFG DATE: QUARTER - 3 / YEAR - 10
- CONTINUOUS OUTPUT POWER: 2800 VA
- DC INPUT RANGE: 9.0 TO 16.8 VDC (12.6 NOMINAL)
- MAXIMUM CONTINUOUS INPUT CURRENT: 373 ADC
- NOMINAL AC OUTPUT VOLTAGE / FREQUENCY: 120 VAC / 60 HZ
- MAXIMUM CONTINUOUS OUTPUT CURRENT: 23.3 AAC
- SURGE AMPS (OVERCURRENT / FAULT LIMIT): 70 AAC (1 MSEC), 40 AAC (100 MSEC)
- SURGE POWER: 3900 REAL WATTS ( 5 SECONDS)
- AC CURRENT DISTORTION AT RATED POWER: <5% THD
- CONTINUOUS CHARGER CURRENT: 125 ADC @ VDC NOMINAL WITH 120 VAC / 60 HZ (18 AAC) INPUT
- INPUT VOLTAGE RANGE: 60 TO 140 VAC
- INPUT FREQUENCY RANGE: 50 TO 70 HZ
- MAXIMUM AC INPUT CURRENT: 30 AAC EACH INPUT (60 AAC TOTAL)
- DC OUTPUT RANGE: 6.5 TO 16.5 VDC
- POWER FACTOR: >.95
